The Over-Flow Ultraviolet + Ozone Combined Sterilizer is a cutting-edge device that provides effective, all-round disinfection for pools, water treatment systems, and other applications. By combining the destructive power of ultraviolet (UV) light and ozone, this system achieves unmatched sterilization and purification. The UV component targets and destroys the DNA and RNA of microorganisms, while ozone delivers strong oxidation to eliminate bacteria and harmful organic substances without producing unwanted by-products.

Dual-Action Sterilization

The combination of UV and ozone technologies creates a robust disinfection system. UV light effectively destroys microbial DNA and RNA, preventing their replication, while ozone penetrates bacterial enzymes to disrupt metabolism, ensuring complete eradication of contaminants.

Low-Cost, Safe, and Efficient

This sterilizer is cost-effective, requiring only electricity for operation and no additional consumables. It is equipped with a fully sealed, waterproof driver that prevents electrical hazards, ensuring safe and reliable performance in all conditions.

Durable and Reliable Design

The sterilizer’s stainless steel body provides superior durability and corrosion resistance. Its robust construction makes it ideal for long-term use in demanding environments.

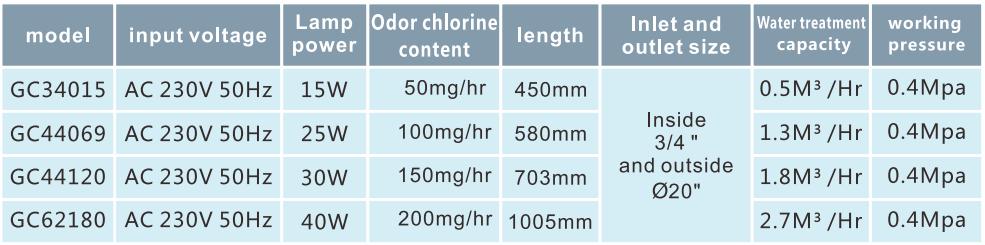

Technical Specifications

Model	Input Voltage	Ozone Output	Length	Water Treatment Volume	Operating Pressure
GC34015	AC230V 50Hz	50mg/hr	450mm	0.5M³/Hr	0.4Mpa
GC44069	AC230V 50Hz	100mg/hr	580mm	1.3M³/Hr	0.4Mpa
GC44120	AC230V 50Hz	150mg/hr	703mm	1.8M³/Hr	0.4Mpa
GC62180	AC230V 50Hz	200mg/hr	1005mm	2.7M³/Hr	0.4Mpa

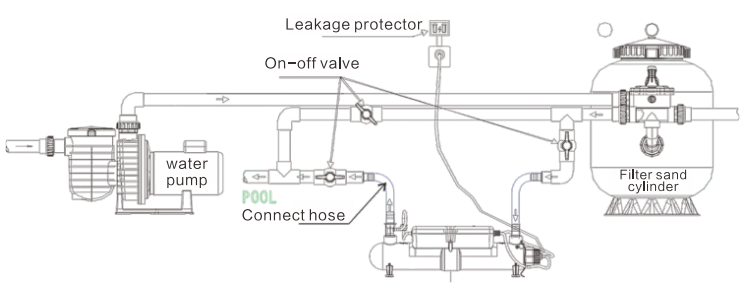

Installation Instructions

• The nominal diameter of the sterilizer interface is 3/4″ for internal connection and Ø20 for external connection.
• Before installation, close the pipeline valve and clean any oil stains or dust at the installation nozzle.
• Ensure the hose seal is secure with a throat band during connection.
• Connect the power supply to AC230V 50/60Hz and securely attach the grounding wire.
• Keep the operating temperature below 90°C and avoid freezing water in the sterilizer.
• The blue indicator light signals normal operation, while the red light indicates a fault.
