The Intelligent Water Replenishment Controller is an efficient and reliable solution for maintaining optimal water levels in swimming pools, SPAs, bathtubs, and other water systems. Using high-precision, corrosion-resistant sensors, this controller ensures accurate water level monitoring and automatic replenishment. Its low-voltage 24VDC power supply provides safe and energy-efficient operation, making it ideal for residential and commercial applications.

Automatic Water Level Management

This controller eliminates the hassle of manual water replenishment. When the water level drops below the preset threshold, the system automatically replenishes it, ensuring consistent water levels without user intervention.

Easy to Use and Install

The controller is designed for simple installation and operation. Its intuitive controls and minimal setup requirements make it accessible for all users. Choose between the control panel mode and key switch mode for operation, offering flexibility to meet diverse preferences.

Versatile Applications

This water replenishment system is perfect for a range of environments, including:

• Swimming Pools
• SPAs
• Bathtubs

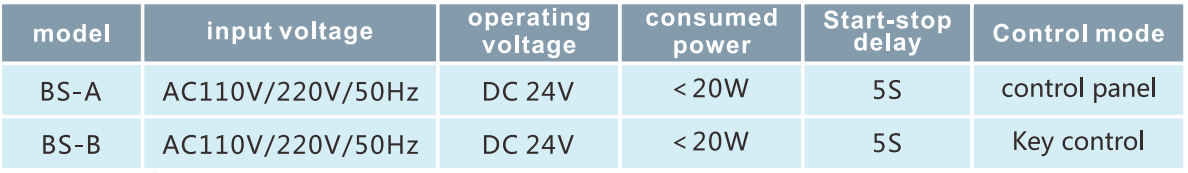

Technical Specifications

Model	Input Voltage	Power Consumption	Control Mode
BS-A	AC110V/220V 50Hz	<20W	5S Control Panel
BS-B	AC110V/220V 50Hz	<20W	5S Key Control

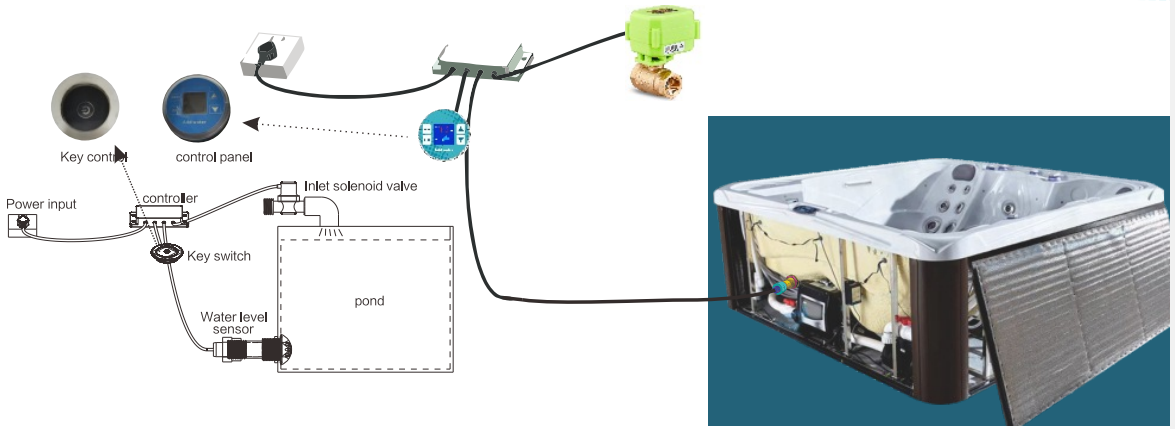

Installation Instructions

• Secure the controller on a stable and dry surface near the water system.
• Install the water level sensor at the appropriate height to monitor levels accurately.
• Connect the power supply to an AC110V/220V source and ensure proper grounding.
• Test the system by allowing the water level to drop below the set position to verify automatic operation.
• Regularly check and clean the sensors to maintain optimal performance.
